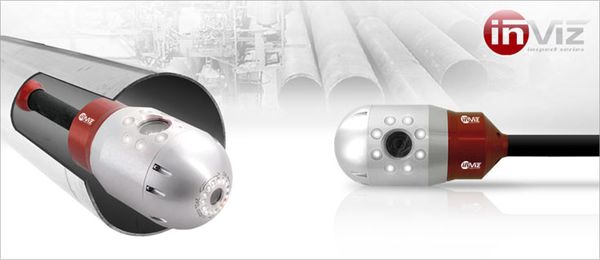

The ultimate pipe inspection camera system. Two cameras integrated in a single head allow fast and secure inspection of pipe lines with a nominal cross-section from 80mm to > 1,000 mm. One camera is used used for guidance with forward (axial) viewing direction and the second, side-view camera module enables detailed inspection of the surface. With up to 10x optical zoom, endless 360° rotation and self-leveling capability, the Revolver 80 system is the perfect tool to carry out weld inspections, search for corrosion and contamination in a wide range of pipes.
Features include:
- Zoom/autofocus , double camera system with continuous 360° Rotation capability
- High resolution ( >450 lines ) main camera 90° side view orientation
- Standard front camera (color) for secure navigation
- Side view camera system with 10x optical zoom (46°wide to 4.6° tele) with manual and autofocus for pipe diameter from 80 mm to minimum 1000 mm+
- High end S-VHS video output (up to 80 meters) and CVBS video out (up to 150 Meter)
- PAL or NTSC video version available
- Standard design ready-to-use with 30 meters kevlar strengthened PU cable, optional up to 150 meters
- Infinite 360° rotation of probe heads
- Perfect for helix inspections (screw type inspections of pipe walls)
- Easy, programable constant speed levels without joystick operation
- Maintenance free white light LED for both visual axes
- Ultra strong LED technology with additional 60 seconds turbo mode
- Camera dimensions: 79 mm dimension at 169 mm rigid length
- Adapter piece for common fiber glass sliding tools (10 mm couplings)
- Digital bus system, compatible to existing INVIZ SNK camera system
- Basic version incl. 95 mm centering tool
- Waterproof up to 5 meters water column
- Environment and operating temperature up to 65°C
- New, digital drive technology allows step-by-step movement with high Zoom (high speed positioning with 5 sec for each rotation)
There is no doubt that this is the ultimate in pipe inspection systems. To learn more email us. To download the datasheet click Revolver 80 datasheet.
